Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm

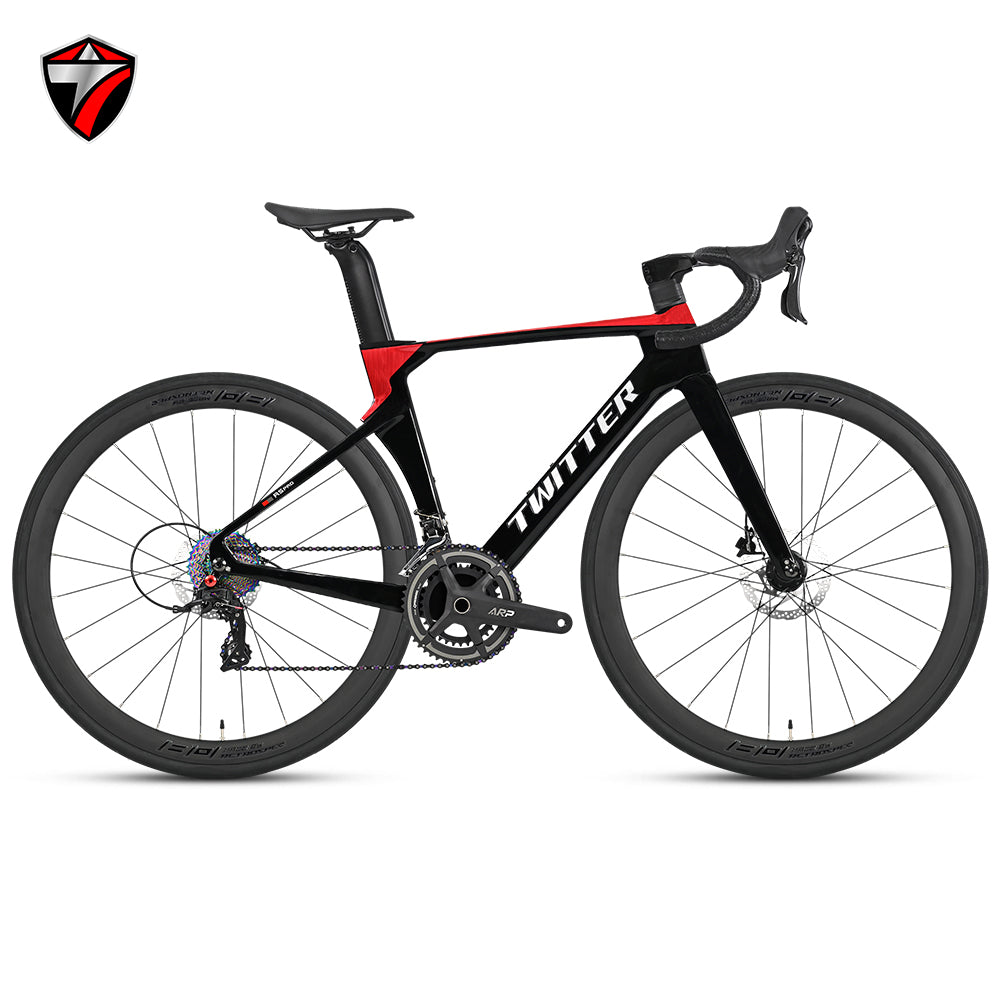

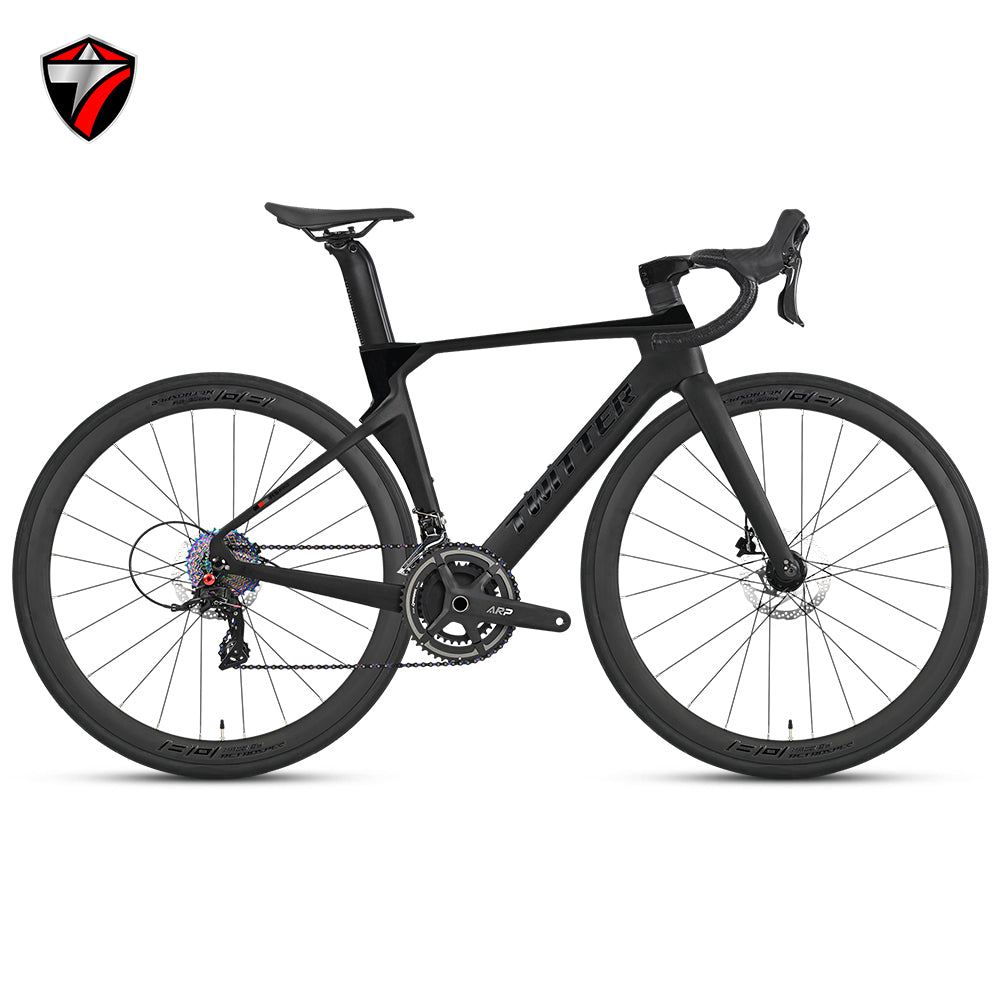

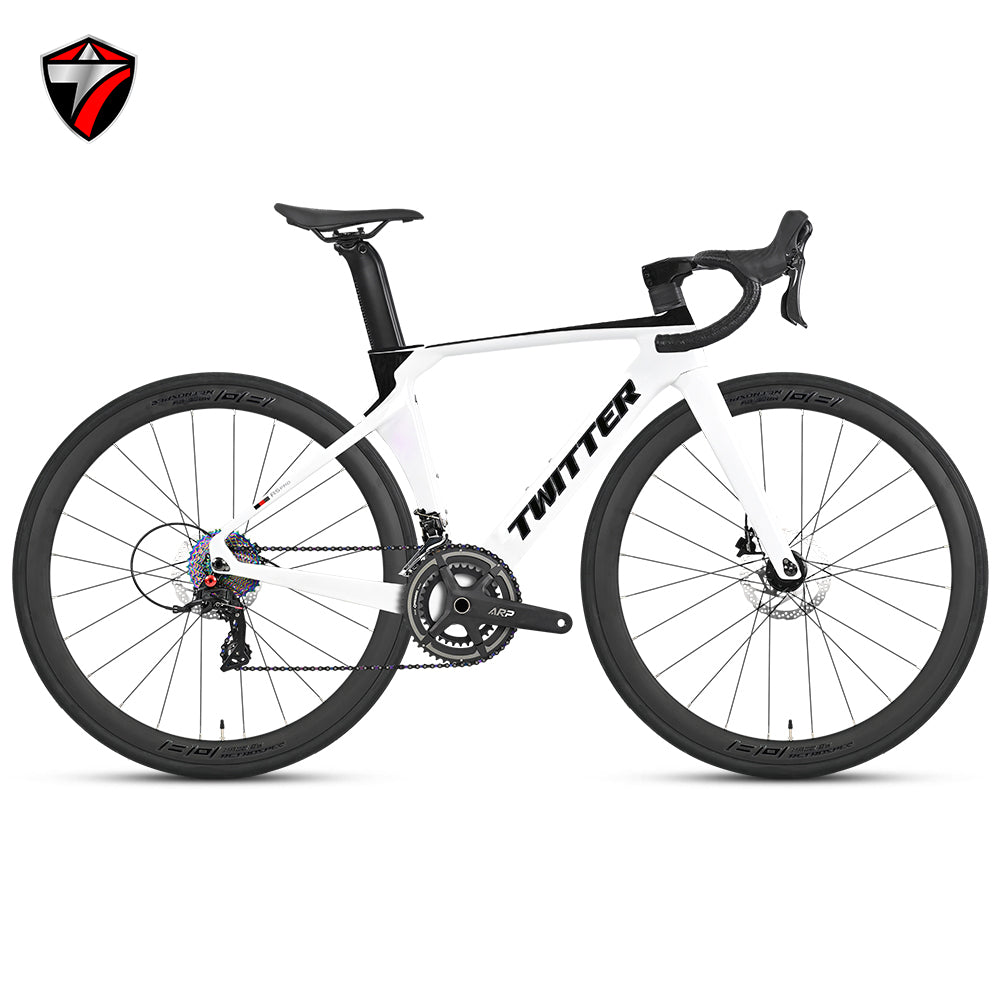

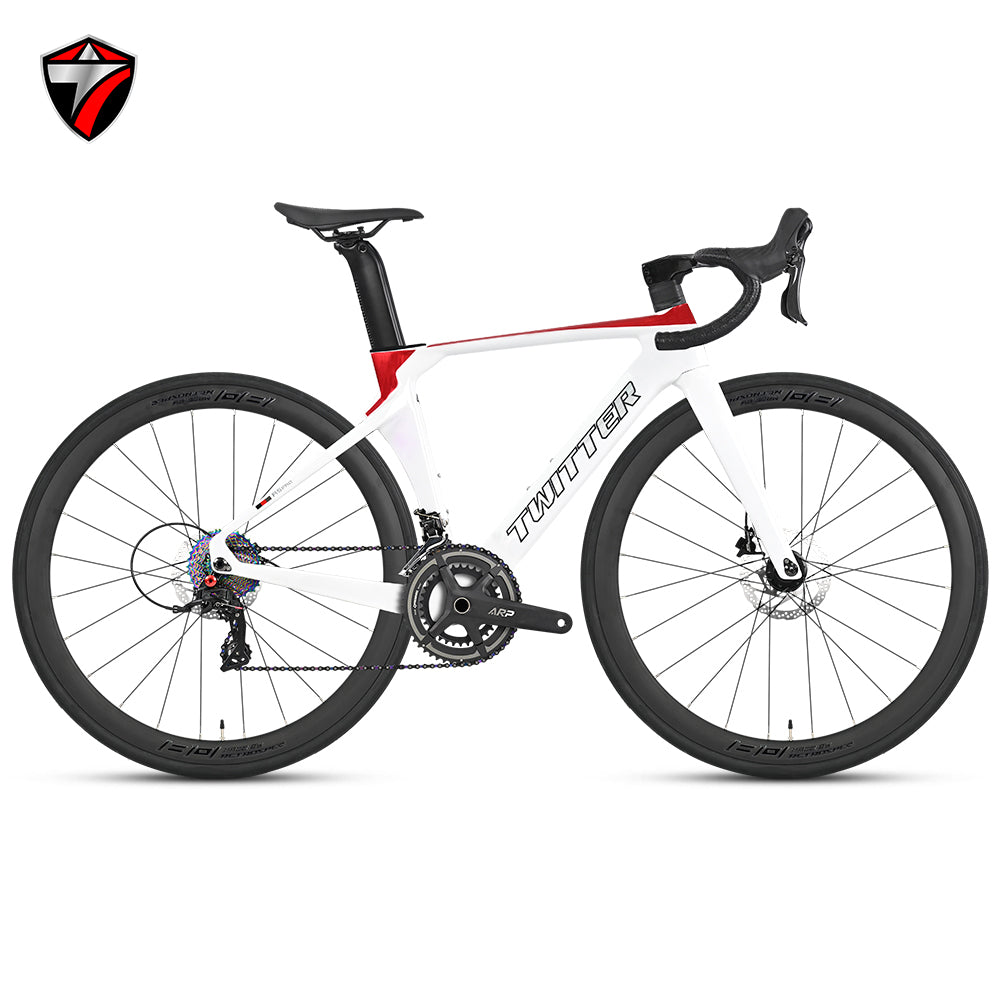

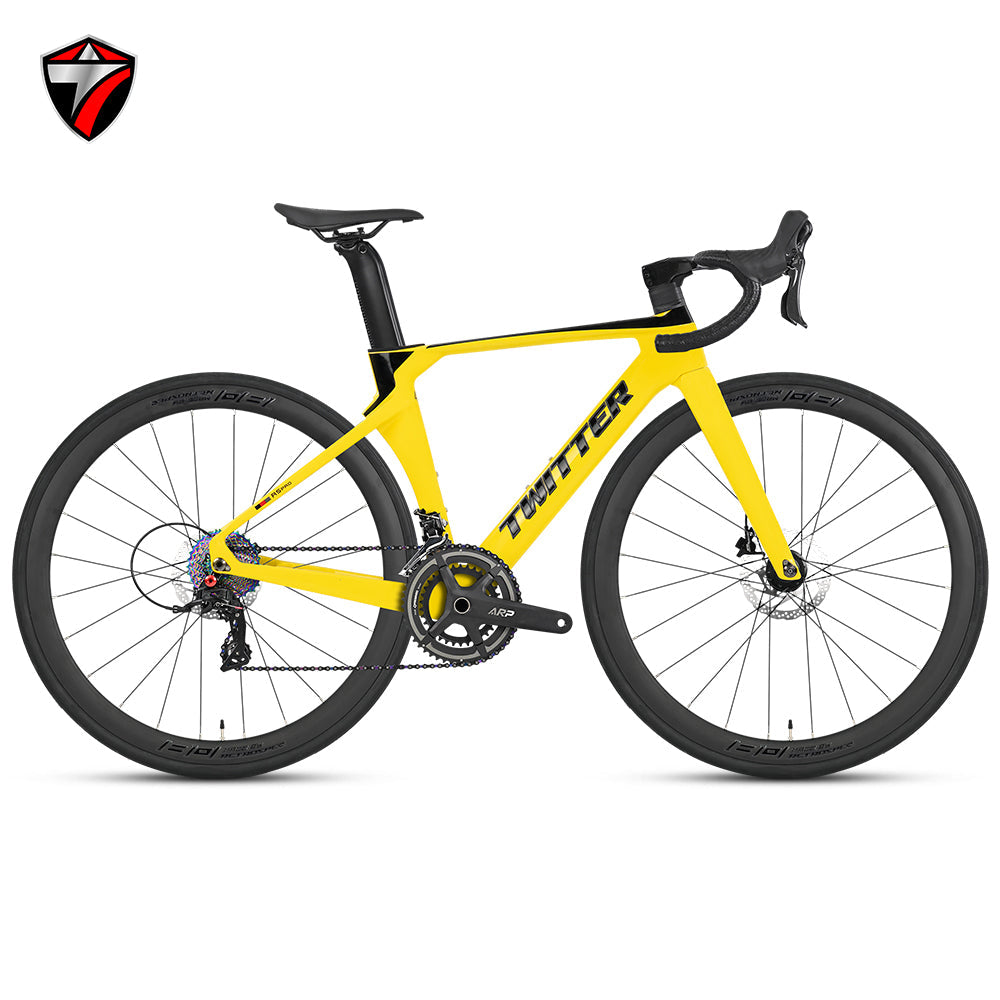

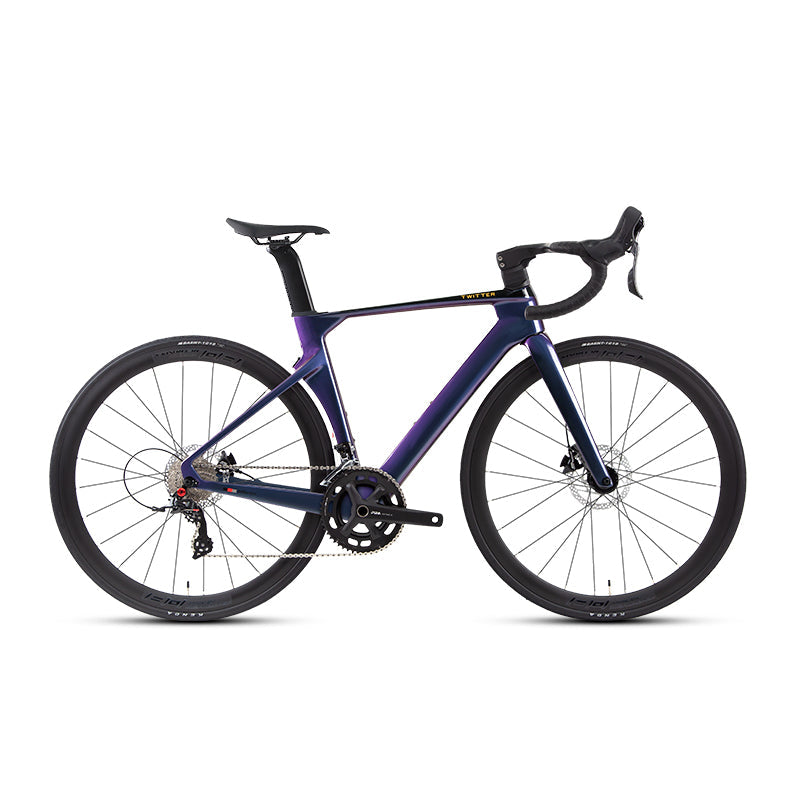

• Bike Colors: WhiteBlack / WhiteRed / BlackRed / MatteBlack / MatteGray / Yellow / Others / Full Holographic

• Net Weight: 9.3 kg (both variants)

---

Frame & Structure

• Frame: R5pro (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero-Racing geometry, full internal cable routing

• Fork: R5pro (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, Aero-Racing design

• Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (420×90 mm), full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings

• Washer: Special for internal cable routing

---

Drivetrain Options

Variant 1 – RS-24S Hydraulic Disc, Alloy Wheel

• System: RS-24S, hydraulic disc, alloy wheel

• Shifters: RS (SENSAH HRD6900-R) 2×12-speed hydraulic

• Front Derailleur: RS (SENSAH Z2) 2-speed

• Rear Derailleur: RS (SENSAH RD8500-GS) 12-speed

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors

Variant 2 – WheelTop TX 24S Wireless Hydraulic, Alloy Wheel

• System: WheelTop TX 24S, wireless & hydraulic, alloy wheel

• Shifters: WheelTop EDS TX 2×12-speed (wireless & hydraulic)

• Front Derailleur: WheelTop EDS TX 2-speed (wireless)

• Rear Derailleur: WheelTop EDS TX 12-speed (wireless)

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: WheelTop hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, slotted, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS aluminum alloy AL7005, double wall, W21×H38 mm, 700C

• Spokes: SHUNJIU circular 14G

• Tires: INNOVA 700×28C, black

---

Braking System

• Variant 1: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm

• Variant 2: WheelTop hydraulic disc, 160/160 mm

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
