Key Components

• Wheel Size: 700C

• Frame Heights: 46 / 48 / 50 / 52 / 54 cm

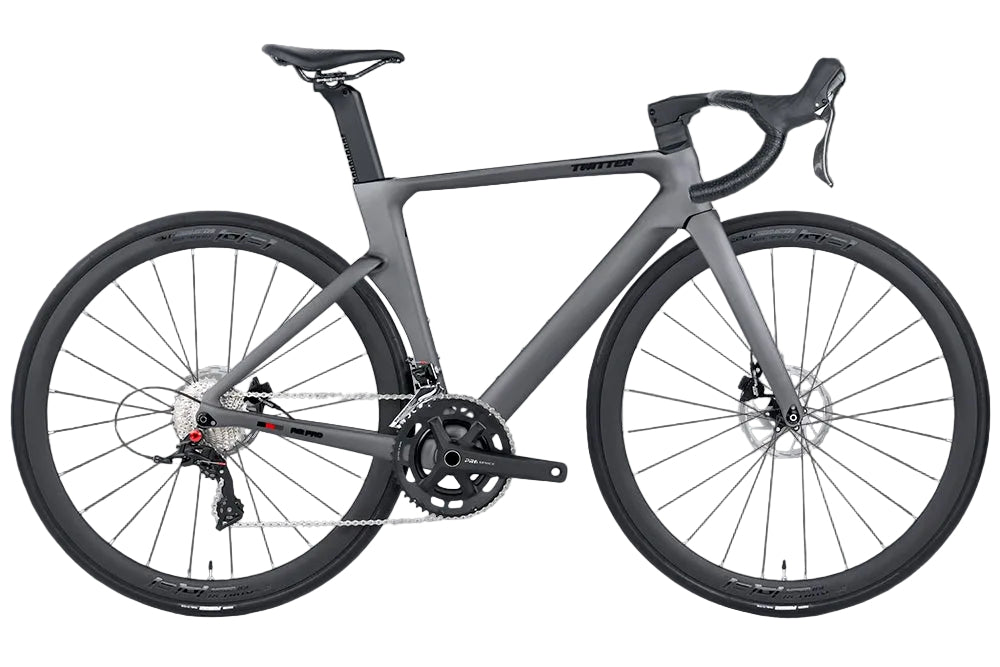

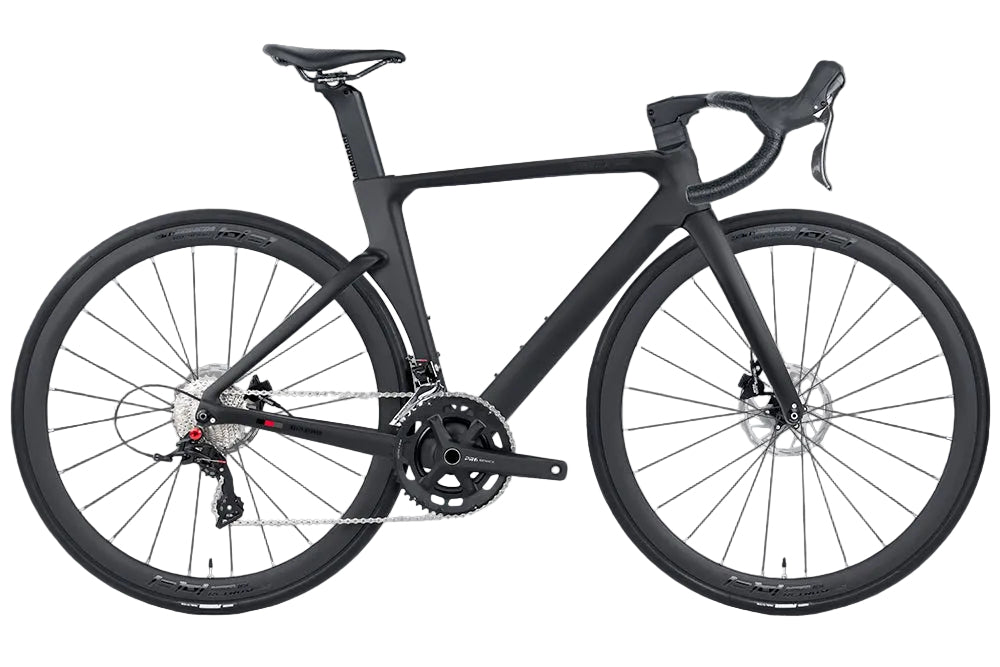

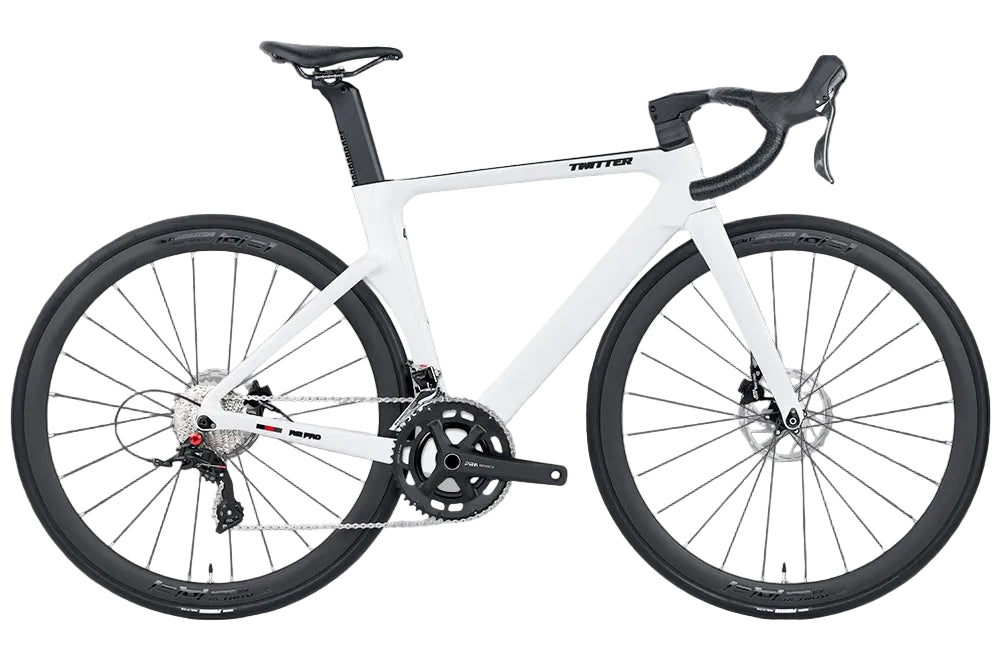

• Bike Colors: White / Matte Black / Matte Dark Gray / Cement Gray / Others

• Net Weight: 9.2 kg (both variants)

---

Frame & Structure

• Frame: R12pro (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero design, full internal cable routing

• Fork: R12pro (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

• Handlebar Set: Integrated Handlebar & Stem (420×90 mm), high modulus Carbon Fiber, full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings

• Washer: Dedicated for internal cable routing

---

Drivetrain Options

Variant 1 – SHIMANO Claris R2000 16-Speed (Alloy Wheel)

• System: SHIMANO Claris R2000, 2×8-speed, alloy wheel

• Shifters: SHIMANO Claris R2000 2×8-speed

• Front Derailleur: SHIMANO Claris R2000 2-speed

• Rear Derailleur: SHIMANO Claris R2000 8-speed

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUGEK 8-speed, 11–26T

• Chain: SUMC 8-speed

• Brakes: RS flat-mount, cable-pull hydraulic disc, 160/160 mm rotors

Variant 2 – SRAM RIVAL 22-Speed (Alloy Wheel)

• System: SRAM RIVAL, 2×11-speed, alloy wheel

• Shifters: SRAM RIVAL 2×11-speed

• Front Derailleur: SRAM RIVAL 2-speed

• Rear Derailleur: SRAM RIVAL 11-speed

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 11-speed, 11–30T

• Chain: SUMC 11-speed

• Brakes: RS flat-mount, cable-pull hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS aluminum alloy AL7005, double wall, W21×H38 mm

• Spokes: SHUNJIU circular 14G

• Tires: INNOVA-PRO 700×28C, black

---

Braking System

• Brakes: RS flat-mount, cable-pull hydraulic disc, 160 mm front / 160 mm rear rotors

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
