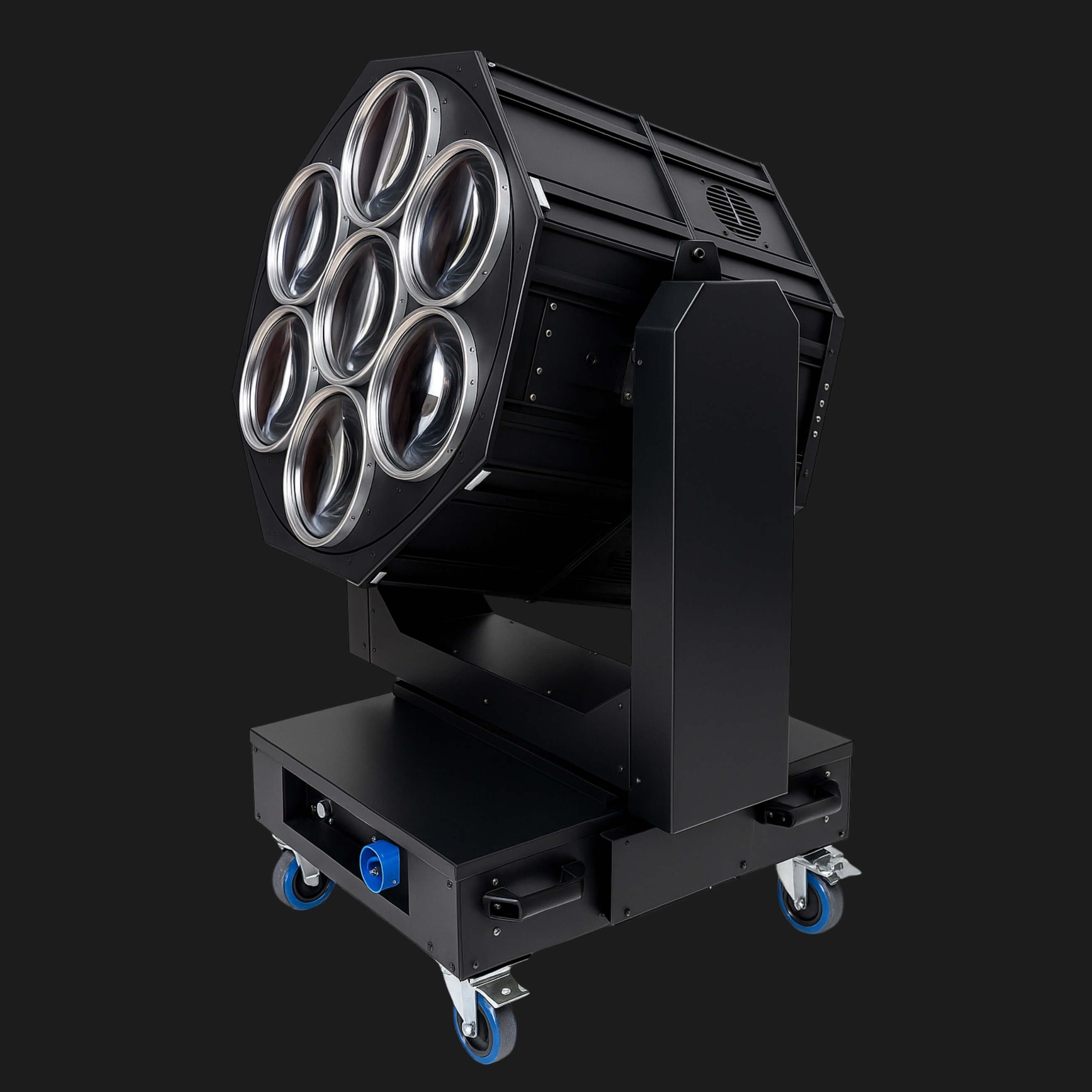

O78 Sky Laser Light Show Projector IP65 10 km Beam
O78 Sky Laser Light Show Projector IP65 10 km Beam
Regular price
€13.479,84
Sale price
€13.479,84
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 10 items left in stock.
A Beacon for the Night Sky
O78 Sky Laser is a purpose-built laser light show projector designed for outdoor sky-beam installations. In clear or lightly hazy conditions, its needle-thin column is clearly visible up to 10 km. Use it on landmark towers, hotel rooftops, bridge pylons, or theme-park gateways to create a professional outdoor laser show that becomes your city’s wayfinding signal. This outdoor laser light projector is ideal for hotels, resorts, waterfronts, and municipal plazas that need a true sky laser light effect.

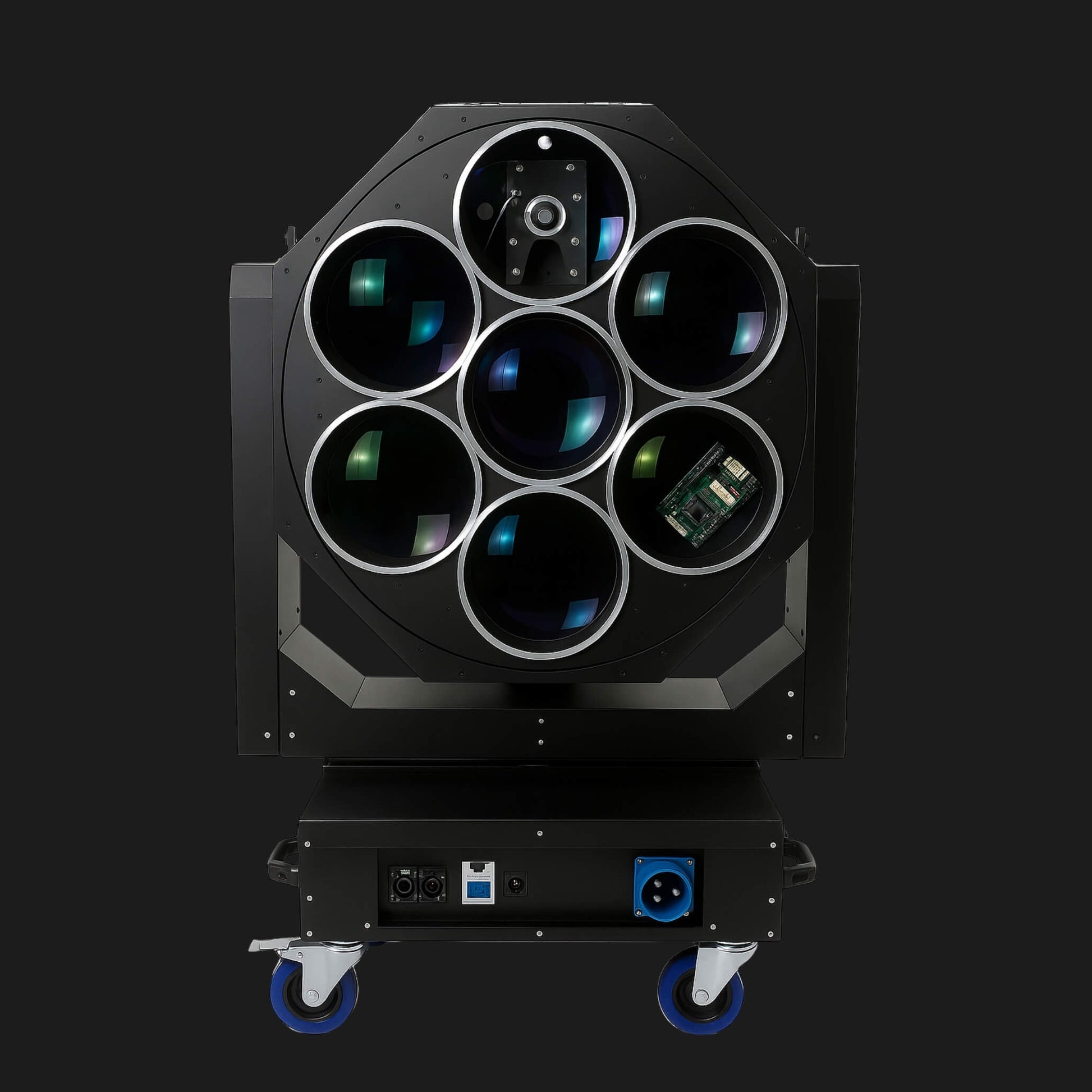

600 mm Aperture and 7×180W RGB Array
A massive 600 mm output aperture and a 7×180W (R43/G25/B112) integrated diode engine compress the beam for extreme throw. The RGB color-mixing system supports per-point control, so looks from pure green sky-needle to saturated RGB sequences stay bright and clean at distance. This power platform is what you want when a laser light show projector must remain punchy across long sightlines.
Precision Motion and Imaging Control
Enjoy 540° pan and 260° tilt on 16-bit resolution with auto-correcting reset. Motorized focus from 0.3°–1.5° lets you switch between needle-thin columns and slightly broadened beams. Choose a 3-, 8-, or 16-facet prism (one at purchase), add frost for texture, run 0–100% linear dimming, and hit accents with strobe up to 25 Hz. It’s a true moving head laser made for sky-beam drama, rotating multi-beam cues, and timecoded shows.
Built for Harsh Outdoor Duty
The sealed IP65 chassis and advanced liquid-pipe cooling are engineered for all-weather rooftops and towers. Control via DMX (24 international standard channels) with RDM for remote addressing and diagnostics—ideal for networks of DMX laser lights that must stay online for long seasons. The laser engine is rated for >10,000 hours to keep operating costs predictable.
Sky Laser vs. Searchlight
• Beam character: O78 produces a razor-thin, coherent column; searchlights are wider and less defined at distance.
• Wayfinding: The 10 km laser beam remains legible from far away; searchlights can diffuse under city glow.
• Show control: O78 integrates with DMX/RDM networks and timecode; many searchlights offer limited cueing.
Landmark Impact and Use Cases
From bridge pylons to resort skylines, O78 functions like a magnet for visitors. Typical deployments include hotel rooftop laser signatures, theme park laser gateways, riverwalk landmarks, and civic installations. Run a clean vertical beam for maximum reach, or pair with haze when you want volumetric textures and layered patterns. For large venues seeking a landmark laser light solution, O78 provides a reliable 10 km laser beam that people can spot instantly.
Power and Installation Notes
• At 230 V mains, 5600 W is approximately 24.4 A; at 200 V mains, approximately 28 A. Use a dedicated circuit and proper grounding.
• Install on a rigid, weatherproof base with drainage, lightning protection, and safe service access. Rooftop platforms or engineered towers are recommended.
• For straight sky-beam looks, aim near-vertical. For directional “pointer” beams, confirm sight lines and local ordinances before commissioning.
Specs
Product name
O78 Sky Laser (Outdoor Moving-Head Sky-Beam)
Light source
Integrated semiconductor laser-diode engine
Output power layout
7×180W (R43 / G25 / B112)
Optics / aperture
600 mm output
Rated source life
>10,000 hours
Focus
0.3°–1.5° motorized
Color system
RGB color mixing, per-point control
Effects
Beam rotation effects
Prism (choose one)
3-facet / 8-facet / 16-facet
Frost
Yes
Dimming
0–100% linear
Strobe
Up to 25 Hz (random or pulse)
Pan / tilt
540° pan, 260° tilt, 16-bit precision, auto-correcting reset
Control and channels
DMX, 24 international standard channels; RDM capable
Ingress protection
IP65
Cooling
High-efficiency liquid-pipe cooling
Power input
0–100% linear
Strobe
AC 200–240 V, 50/60 Hz
Max power draw
5600 W
Dimensions (L×W×H)
818 × 720 × 1200 mm
Dimming
0–100% linear
Net weight
135 kg
FAQ
Q: How far is the beam visible?
A:In clear or lightly hazy conditions it is visible up to around 10 km. Actual visibility depends on atmosphere, ambient light, and mounting height.
Q: Do I need haze or fog?
A:Not for a vertical sky-beam. Add haze or enable frost when you want volumetric textures or multi-beam patterns.
Q: Can it run outdoors year-round?
A:Yes. The IP65 enclosure and liquid-pipe cooling are designed for permanent outdoor duty on rooftops and towers.
Q: How do I control it?
A:Use DMX (24 channels) from your console or server; RDM supports remote addressing and diagnostics. Perfect for networks of DMX laser lights.
Q: What ships in the box?
A:Power lead, signal connectors, basic mounting hardware, and safety cable. Optional accessories include custom roof brackets, outdoor cabinets, and surge/lightning packages.
Q: Any special permits or approvals?
A:Always follow local outdoor-laser and aviation rules; avoid flight paths and residential windows, and implement required safety distances.
Q: What maintenance should I plan?
A:Quarterly checks on seals and fasteners and periodic optical cleaning; shorten intervals in dusty or salt-spray environments.
Q: Compliance and Safety
A:Follow local outdoor laser and aviation regulations. Aim away from flight paths and residences. For public proximity viewing, maintain required separation distances and apply shielding or screening where necessary.
