Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 cm

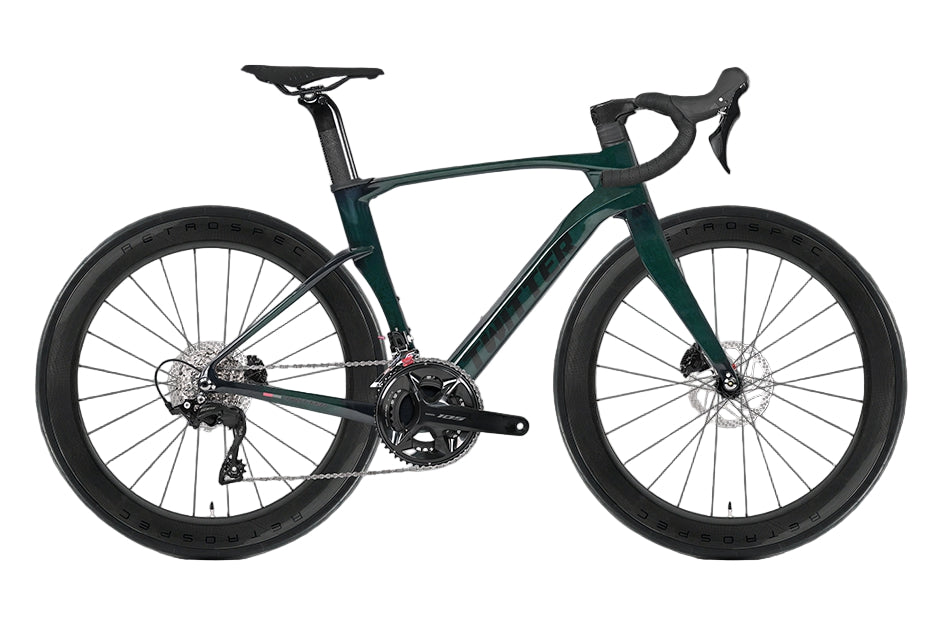

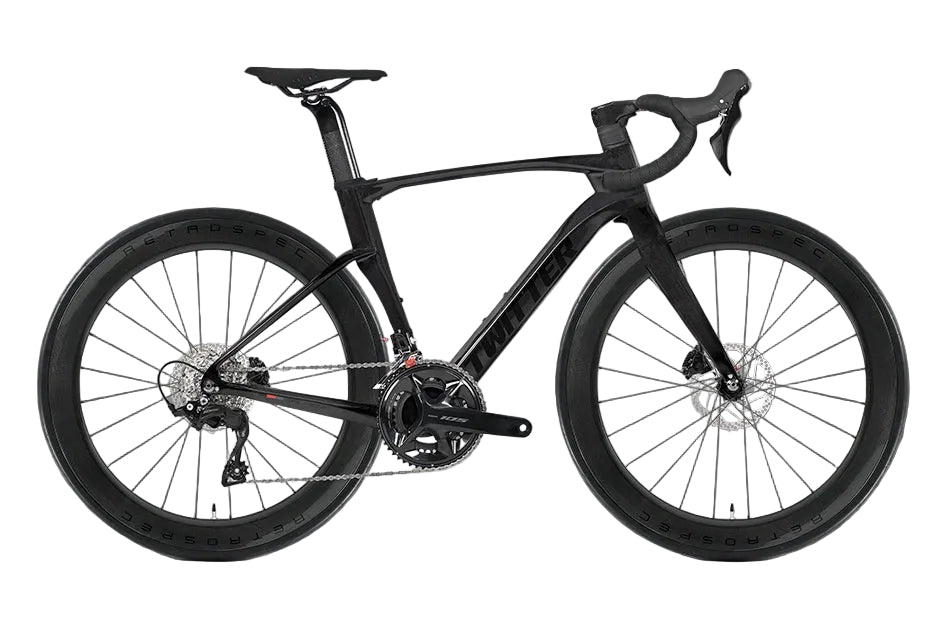

• Bike Colors: 3K Gloss Black / 3K Gloss Green

• Net Weight: 8.8 kg (both variants)

---

Frame & Structure

• Frame: CYCLONE-3rd (Disc & Thru-Axle 12×142), high modulus Carbon Fiber 3K, aerodynamic design with internal cable routing

• Fork: CYCLONE-3rd (Disc & Thru-Axle 12×100), high modulus Carbon Fiber 3K, 700C

• Seat Post: High modulus Carbon Fiber 3K, Aero-Racing profile

• Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (400×90 mm), full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×29 mm (WheelTop) / T47×24 mm (SHIMANO), hollow & sealed bearings

• Washer: Dedicated for internal cable routing

---

Drivetrain Options

Variant 1 – WheelTop TX 24-Speed Wireless Hydraulic, 3K Carbon 60H Rim

• System: WheelTop EDS TX wireless & hydraulic, 2×12-speed

• Shifters: WheelTop EDS TX 2×12-speed (wireless & hydraulic)

• Front Derailleur: WheelTop EDS TX 2-speed (wireless)

• Rear Derailleur: WheelTop EDS TX 12-speed (wireless)

• Crankset: TW Carbon Fiber + AL7075 Hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: WheelTop hydraulic disc, 160/160 mm rotors

Variant 2 – SHIMANO 105 R7120 24-Speed Hydraulic, 3K Carbon 60H Rim

• System: SHIMANO 105 R7120, 2×12-speed hydraulic

• Shifters: SHIMANO 105 R7120 2×12-speed hydraulic

• Front Derailleur: SHIMANO 105 R7100 2-speed

• Rear Derailleur: SHIMANO 105 R7100 12-speed

• Crankset: SHIMANO 105 R7100 34/50T

• Cassette: SHIMANO 105 R7100 12-speed, 11–34T

• Chain: SHIMANO HG6100 12-speed

• Brakes: SHIMANO 105 R7070 hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, centerlock disc, thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber 3K Flat Rim, W28×H60 mm

• Spokes: SHUNJIU 14G (flat/circular variant not specified)

• Tires: MAXXIS PURSUER 700×28C, foldable, lightweight, black

---

Braking System

• WheelTop Variant: WheelTop hydraulic disc, 160/160 mm

• SHIMANO Variant: SHIMANO 105 R7070 hydraulic disc, 160/160 mm

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
